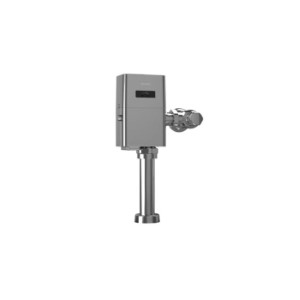

ECOPOWER TOUCHLESS 1.0GPF TOILET

COMMERCIAL WASHOUT URINAL

Features:
Vitreous china
High Efficiency operates in the range of 0.5 gpf to 1.0 gpf (1.9 Lpf/3.8 Lpf)
Flushing rim
Siphon jet flush action
3/4" inlet spud
Outlet connection threaded 2" inside (NPTF)
Wall hanger
Fixture only
Meets ANSI flush requirements at 0.5 gpf and 1.0 gpf
Recommended working pressure: between
20 psi at valve when flushing and 80 psi static

This high-efficiency universal urinal operates in the range of 0.125 GPF to 1.0 GPF allowing a range of flush valves to be used with it (not included). Features include a flushing rim and a washout flush action for effectiveness. This compact, low-consumption model is ideal for commercial applications where reducing water consumption is a priority.

High efficiency, low consumption operates in range of 0.125 GPF to 1.0 GPF (0.5 LPF to 3.8 LPF) valve not included
Flushing rim
Washout flush action
Integral strainer
3/4 in. inlet spud
Outlet spud with 1-1/2 in. tubing tailpiece
Wall hanger
Fixture only
Meets ANSI flush requirements at 0.125 to 1.0 gpf

This ultra-high-efficiency, low-consumption universal urinal operates in the range of 0.125 GPF - 1.0 GPF. Choose a manual- or Selectronic(R) sensor-operated flush valve that suits your budget and water usage requirements. Features include a flushing rim and washout flush action for effectiveness, plus extended sides for privacy.

Vitreous china
High Efficiency, Low Consumption. Operates in the range of 0.125gpf to 1.0gpf (0.5Lpf to 3.8Lpf).
Flushing rim
Elongated 14" rim from finished wall
Washout flush action
Extended sides for privacy
3/4" inlet spud
Outlet connection threaded 2" inside (NPTF)
2 wall hangers
Fixture only
Strainer included
Meets ANSI flush requirements at 0.125 to 1.0 GPF

SPUD 2 URINAL/TOILET
